MECHANICALS Updated April 2017

GMC 6X6 Models M135 & M211

 AIR SYSTEM

ITEM CONDITION PRICE

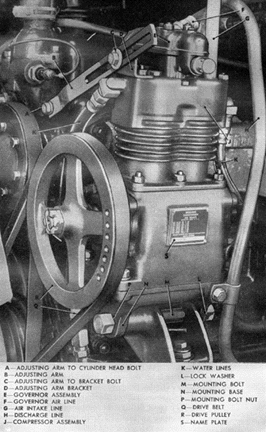

AIR COMPRESSOR U1 $100.00
AIR HORNS with SOLENOID U1 $70.00
AIR TANK U1 $50.00
AIR TANK MOUNT SET U1 $50.00
GLAD HAND U1 $10.00
GLAD HAND DUMMY U1 $10.00
WIPER MOTOR U1 $25.00

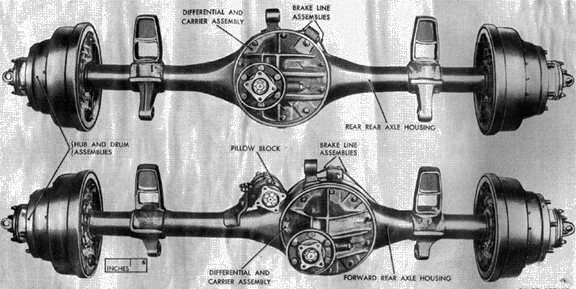

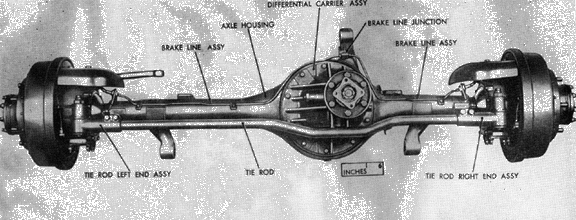

AAXLES (top of page)



ITEM CONDITION PRICE
AXLE ASSEMBLY, CENTER U1 $500
AXLE ASSEMBLY, REAR U1 $500
AXLE SHAFT, LEFT CENTER U1 $100
AXLE SHAFT, RIGHT CENTER U1 $100
AXLE SHAFT, REAR, (L or Rt) U1 $100

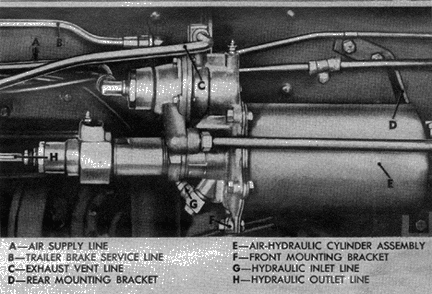

 BRAKES (top of page)

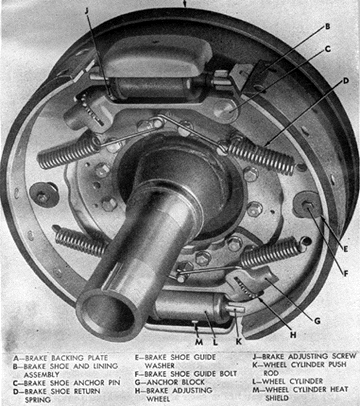

BRAKES
ITEM CONDITION PRICE
BRAKE DRUM U1 $35.00
BRAKE PEDAL U1 $10.00
MASTER CYLINDER U2 $50.00
(recommend installing kit )
MASTER CYLINDER KIT NEW (supply is limited) $50.00
HAND BRAKE BAND NEW $80.00
HAND BRAKE BAND SUPPORT NEW $125.00
HAND BRAKE DRUM NEW $100.00
HAND BRAKE LEVER U1  $20.00
PARKING BRAKE SOLENOID U1 $40.00

 COOLING SYSTEM

   (top of page)



ITEM CONDITION PRICE
FAN U1 $20.00
FAN NEW $30.00
FAN SHROUD           ( F ) U1 $15.00

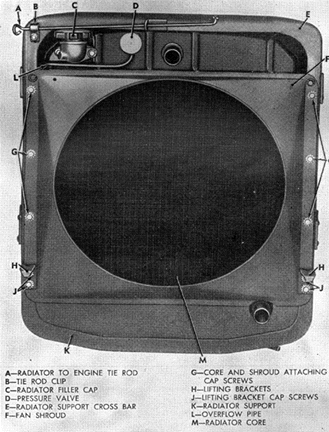

RADIATOR, PRESSURE TESTED   ( M ) U1 (dim: 70# 36x32x12) $200.00
RADIATOR CAP           ( C ) U1 $20.00
THERMOSTAT HOUSING SET U1 $20.00
TRANSMISSION COOLING LINE, LEFT U1 $15.00
TRANSMISSION COOLING LINE, RT.  U1 $15.00
TRANSMISSION COOLER U1 $60.00
WATER PUMP PULLEY U1 $10.00
WATER PUMP PULLEY NEW $15.00

GMC 6X6

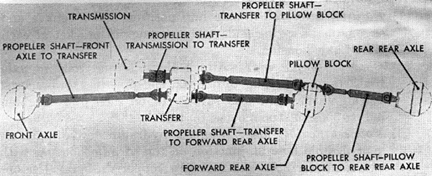

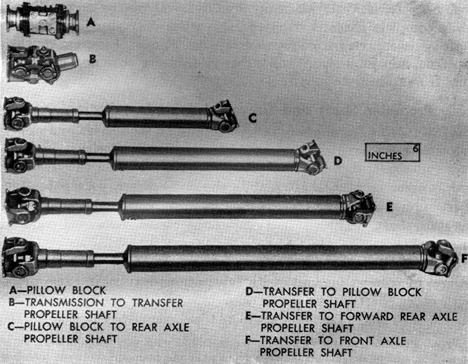

DRIVESHAFTS (top of page)





Driveshaft Tube lengths:

C = 13.5"
D, 135/211 = 28"
D, 215/221 = 16"
E, 135/211 = 25"
E, 215/221 = 13"
F = 36"
ITEM CONDITION PRICE
DRIVESHAFT, FRONT           ( F ) U1 $75.00
DRIVESHAFT, FRONT           ( F ) NEW $175.00
PILLOW BLOCK (A) U1 $100.00
PILLOW BLOCK (A) NEW $150.00
PILLOW BLOCK- REAR AXLE           ( C ) U1 $50.00
TRANSFER-CENTER AXLE, 135, 211          ( E ) U1 $50.00
TRANSFER-CENTER AXLE, 135, 211          ( E ) NEW $100.00
TRANSFER-CENTER AXLE, 215, 221          ( E ) U1 $75.00
TRANSFER-PILLOW BLOCK, 135, 211       ( D ) U1 $50.00
TRANSFER-PILLOW BLOCK, 135, 211       ( D ) NEW $100.00
TRANSFER-PILLOW BLOCK, 215, 221       ( D ) U1 $75.00
TRANSFER-PILLOW BLOCK, 215, 221       ( D ) NEW $100.00
TRANSMISSION-TRANSFER           ( B ) U1 $50.00
TRANSMISSION-TRANSFER           ( B ) NEW $80.00





ELECTRICAL (top of page)
ITEM CONDITION PRICE
BLACKOUT HEADLIGHT U1 $35.00
BLACKOUT MARKER, FRONT U1 $30.00
BLACKOUT MARKER, LEFT REAR U1 $35.00
BLACKOUT MARKER, RIGHT REAR U1 $35.00
DISTRIBUTOR with CAP & COIL U1 $100.00
DISTRIBUTOR with CAP & COIL Gov't Rebuilt $200.00
GAUGE, AIR PRESSURE U1 $15.00
GAUGE, BATTERY U1 $15.00
GAUGE, FUEL U1 $20.00
GAUGE, OIL PRESSURE U1 $15.00
GAUGE, TEMPERATURE U1 $20.00
GENERATOR U1 $100.00
GEN-REG CABLE U1 $20.00
HEADLIGHT BUCKET U1 $20.00
HEADLIGHT RING U1 $10.00
IGNITION SWITCH U1 $30.00
INSTRUMENT LIGHT U1 $10.00
PARKING BRAKE SWITCH U1 $20.00
REGULATOR U1 $30.00
SENDING UNIT, AIR PRESSURE U1 $15.00
SENDING UNIT, OIL PRESSURE U1 $15.00
SENDING UNIT, TEMPERATURE U1 $20.00
SPEEDOMETER  U1 $35.00
STARTER U1 $100.00
STARTER NEW $200.00

M 135 / M 211 GMC 302 6X6

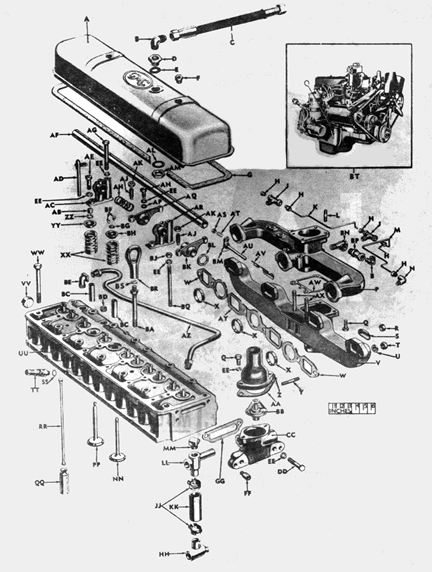

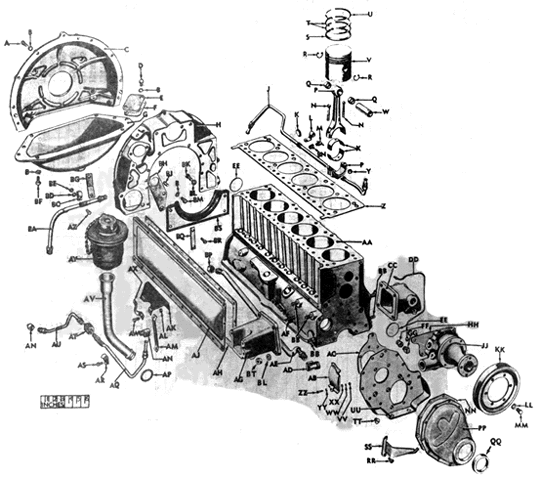

ENGINE PARTS (top of page)
ITEM CONDITION PRICE
CAMSHAFT   ( BA ) U1 $30.00
CRANKSHAFT ( .010-.010 ) U1 $300.00
ENGINE GASKET SET NEW $95.00
FLYWHEEL   ( C ) U1 $25.00
LIFTER   ( QQ ) U1 $5.00
LIFTER COVER U1 $15.00
MANIFOLD GASKET SET NEW $18.00
OIL BREATHER           ( AV ) U1 $10.00
OIL DIPSTICK           ( AY ) U1 $10.00
OIL FILTER CANISTER U1 $10.00
PUSHROD           ( RR ) U1 $10.00
ROCKER ASSEMBLY           ( AF, AQ, AR ) U1 $35.00
TIMING COVER U1 $15.00
VALVE COVER           ( A ) U1 $20.00
VALVE, EXHAUST NEW $25.00
VALVE, INTAKE NEW $15.00
VALVE SPRINGS U1 $2.50





TUNE UP PARTS
ITEM
CONDITION
PRICE
Distributor Cap & Rotor PACKAGE
NEW
$48
POINTS (made in U.S.A.)
NEW
$20
CONDENSOR
NEW
$8
Points & Condensor PACKAGE
NEW
$24
AC WATERPROOF SPARK PLUG
NEW
$21

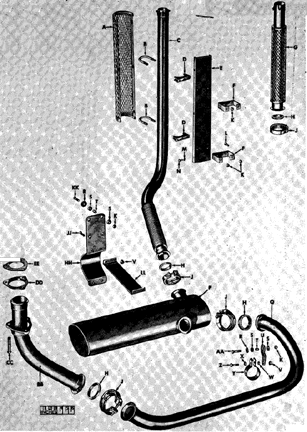

EXHAUST SYSTEM
ITEM  CONDITION PRICE
STACK EXTENSION NEW $50
FRONT PIPE Used $25
EXHAUST RING CLAMP Used $15

M135/M211

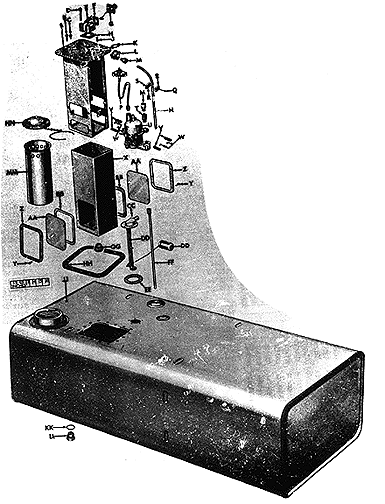

 FUEL SYSTEM (top of page)

ITEM CONDITION PRICE
AIR FILTER ASSEMBLY U1
$50.00
AIR FILTER ELEMENT U1
$20.00
AIR FILTER OIL PAN U1
$25.00
CARBURETOR (need to clean before using) U2
$125.00
CHOKE CABLE U1
$15.00
GAS CAN MOUNT U1
$25.00
THROTTLE CABLE U1
$20.00

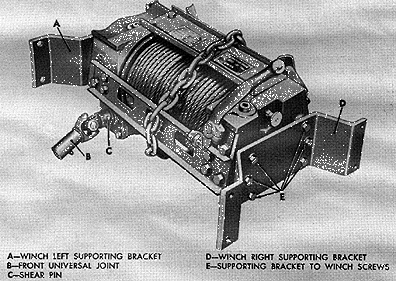

PTO & WINCH

PTO U1 $200.00
WINCH LEVER U1 $50.00
WINCH MOUNT SET U1 $50.00
DRIVESHAFT-PTO CARRIER NEW $40.00

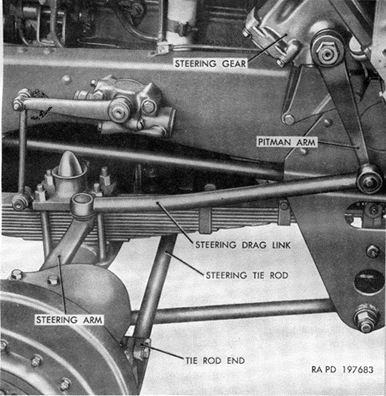

 STEERING SYSTEM (top of page)

ITEM CONDITION PRICE
DRAG LINK U1 $35
DRAG LINK NEW $80
STEERING WHEEL U2 $35
WORM & ROLLER w/SHAFT NEW (3 IN STOCK) $50

GMC 6X6

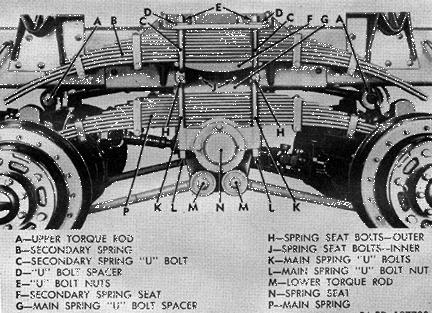

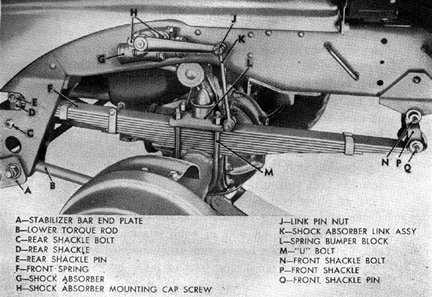

SUSPENSION (top of page)





ITEM CONDITION PRICE
SHOCK, LEFT  U1 $25.00
SHOCK, RIGHT U1 $25.00
SPRING, FRONT (stack only) U1 $35.00
SPRING, REAR (stack only) U1 $35.00
TORQUE ROD, LOWER FRONT U1 $50.00
TORQUE ROD, LOWER REAR U1 $50.00
TORQUE ROD, UPPER REAR U1 $50.00
TRUNION ASSEMBLY U1 $50.00

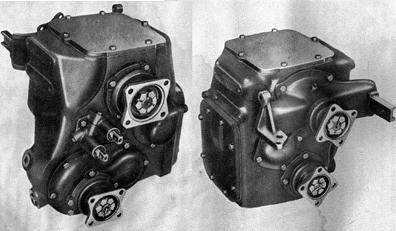

TRANSFER (top of page)





ITEM CONDITION PRICE
TRANSFER CASE U1 $400.00

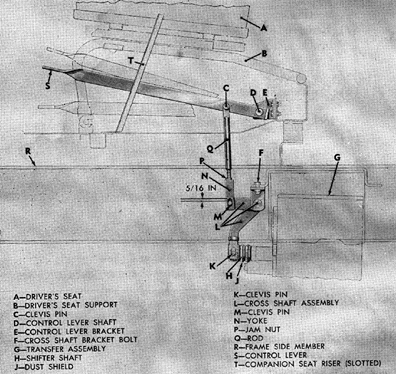

CONTROL LEVER U1 $10.00
SIDE COVER U1 $15.00
used, Hydromatic Transmission parts available per part

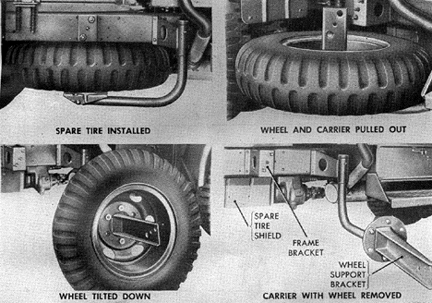

WHEELS

ITEM CONDITION PRICE
DUAL LUGNUT U1 $4.00
DUAL WHEEL U1 $40.00
SINGLE LUGNUT U1 $3.00
(top of page)

Associated Links
M135 / M211 Mechanicals
M35/M35A2
Military Index Page

BODY
UPDATED JAN. 2013  M135 GMC 6x6

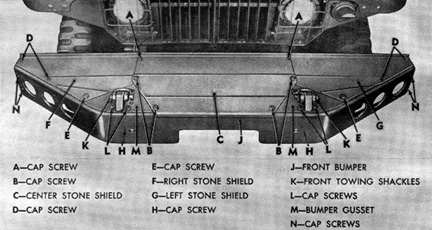

BUMPERS

 ITEM

 CONDITION  PRICE
FRONT BUMPER U1 $175.00
FRONT BUMPER  U2 $75.00
LEFT FRONT SHACKLE MOUNT U1 $20.00
RIGHT FRONT SHACKLE MOUNT U1 $20.00

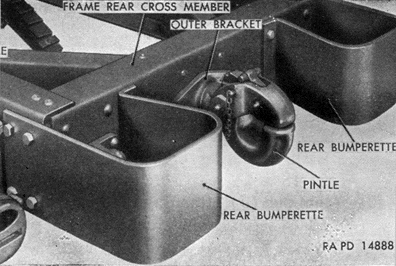

PINTLE TOW HOOK U1 $75.00




GMC 6X6

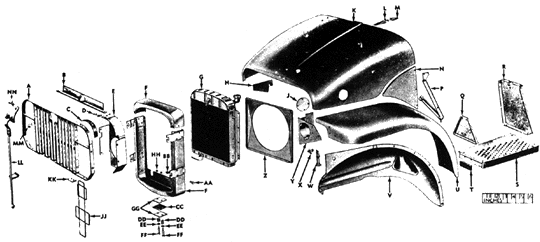

 SHEET METAL

ITEM

 CONDITION
PRICE
BRUSH GUARD, HEADLIGHT      (JJ) U1
$15.00
COWL PANEL, LEFT   ( N  ) U1
$20.00
COWL PANEL, RIGHT   ( N  ) U1
$20.00
FENDER, LEFT, w/SKIRT   ( U + V  ) U1
$250.00
FENDER, LEFT, w/SKIRT   (  U + V ) U2
$100.00
FENDER, RIGHT, w/SKIRT   ( U + V  ) U1
$250.00
FENDER, RIGHT, w/SKIRT   (  U + V ) U2
$100.00
GRILL, RADIATOR w/BRUSH GUARDS   ( A+ JJ  ) U1
$100.00
GRILL, RADIATOR w/o BRUSH GUARDS   ( A ) U2
$30.00
HOOD   ( K  ) U1
$250.00
HOOD   (  K ) U2
$100.00
HOOD HINGE   ( L + M  ) U1
$20.00
HOOD LATCH   ( W  ) U1
$15.00
HOOD PROP, TELESCOPING   ( P  ) U1
$25.00
RADIATOR SUPPORT   (  F ) U1
$20.00
RUNNING BOARD, RIGHT   (  S ) NEW
$100.00
RUNNING BOARD, Left (  S ) U1
$40.00
RUNNING BOARD, Left (  S ) NEW
$100.00
(top of page)



GMC 6X6

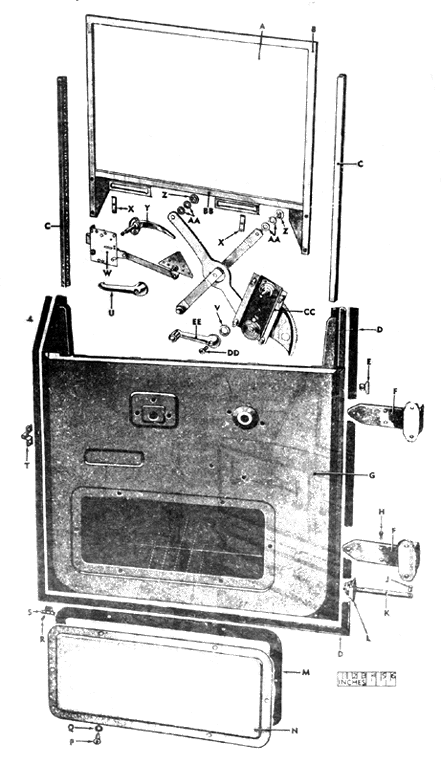

 DOORS

ITEM

 CONDITION  PRICE
DOOR, LEFT, BARE     ( G ) U1 $75.00
DOOR, RIGHT, BARE    ( G ) U1 $75.00
DOOR, RIGHT, BARE    ( G ) NEW $100.00
DOOR, LEFT, COMPLETE    ( G ) U1 $150.00
DOOR, RIGHT, COMPLETE    ( G ) U1 $150.00
DOOR ACCESS PANEL    ( N ) U1 $15.00
DOOR GLASS w/FRAME    ( A+ B ) U1 $60.00
DOOR HANDLE, INSIDE    ( U ) U1 $5.00
DOOR HANDLE, OUTSIDE    ( Y )NO LEFTS U1 $20.00
DOOR HINGE    ( F ) U1 $15.00
DOOR LATCH, RIGHT    ( W ) U1 $25.00
WINDOW HANDLE    ( EE ) U1 $10.00
WINDOW REGULATOR, LEFT    ( CC ) U1 $40.00
WINDOW REGULATOR, RIGHT    ( CC ) U1 $30.00

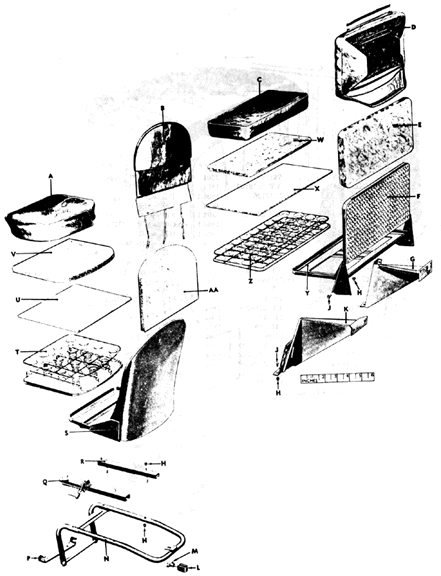

 SEATS



 SEAT CUSHION, RIGHT    ( W,X,Z )  U2  $40.00
 SEAT CUSHION, RIGHT SEAT BACK    ( E )  U1  $15.00
 SEAT FRAME, RIGHT    ( F + Y )  U1  $40.00
 SEAT FRAME, Lft (S) U1
$75.00
(top of page)





(top of page)

GMC 6X6

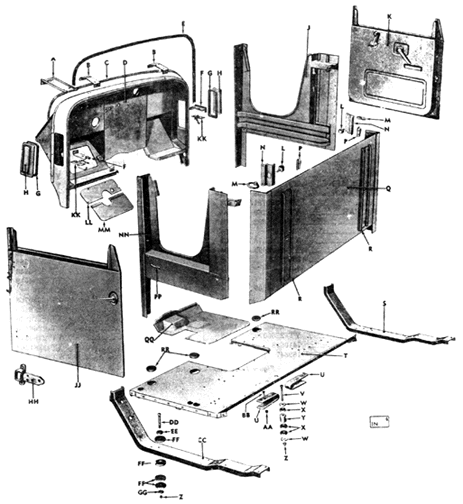

CAB

ITEM

 CONDITION
PRICE

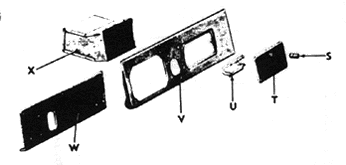

DASH PANEL, LEFT     (W ) U1
$20.00
DASH PANEL, RIGHT    ( V ) U1
$25.00
DATA PLATE, COOLING U1
$10.00
DATA PLATE, MODEL U1
$15.00
DATA PLATE, TRANSMISSION U1
$15.00
INSTRUCTION PLATE, WINCH (6.75"X5") U1
$20.00
DATA PLATE PANEL U1
$15.00
FLOOR PLATE    ( QQ ) U1
$15.00
GAUGE PANEL U1
$15.00
GLOVE BOX     ( X ) U1
$35.00
GLOVE BOX DOOR    ( T ) U1
$35.00
GLOVE BOX DOOR    ( T ) U2
$15.00

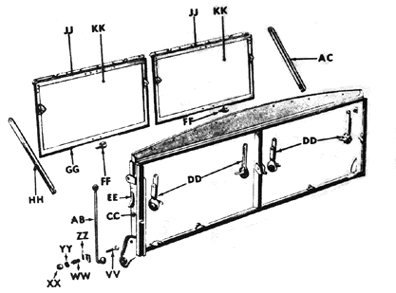

WINDSHIELD PARTS (NO Glass)



FRAME PROP, LEFT     ( HH ) U1
$5.00
FRAME PROP, RIGHT     ( AC ) U1
$5.00
PANE PROP    ( DD ) U1
$10.00

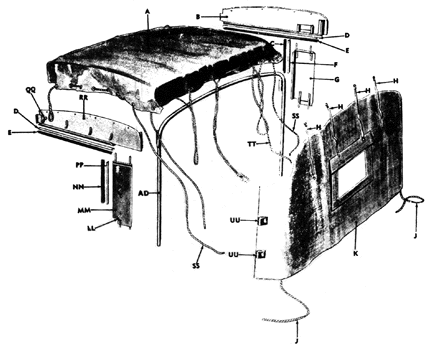

 SOFT TOP steel parts (No canvas)



PANEL, LEFT REAR    ( LL ) U1
$15.00
PANEL, RIGHT    ( B ) U1
$15.00
PANEL, RIGHT REAR    ( G ) U1
$15.00
TOP BOW    ( AD ) U1
$20.00
PANEL & BOW SET (5 PIECES) U1
$75.00
(top of page)









(top of page)

GMC 6X6

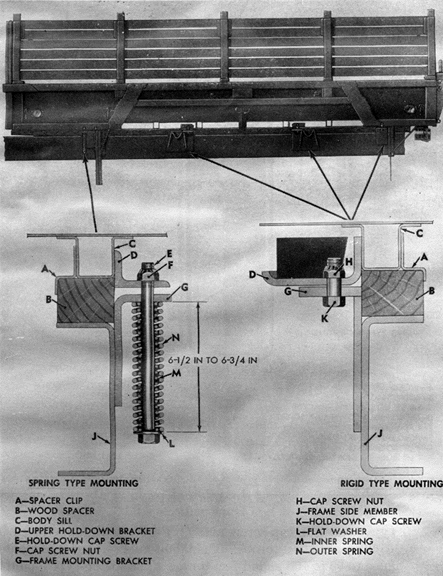

 CARGO BODY

 ITEM CONDITION PRICE
MOUNTING SPRING SET (4) (N) U1 $30.00
SPLASH SHIELD, LEFT FRONT U1 $20.00
SPLASH SHIELD, RIGHT FRONT U1 $20.00
SPLASH SHIELD with FLAP, REAR, M135 U1 $40.00
SPLASH SHIELD without FLAP, REAR  U1 $15.00

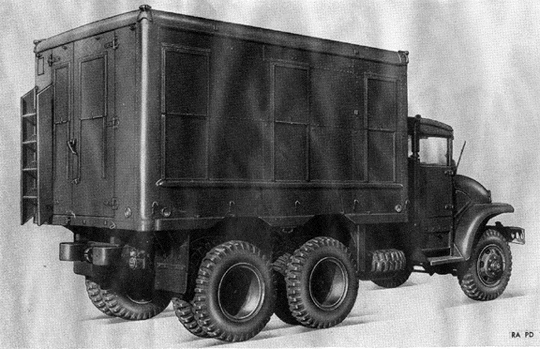

SHOP VAN

 (top of page)

SPLASH SHIELD, LEFT FRONT  U1 $25.00
SPLASH SHIELD, RIGHT FRONT U1 $25.00
SPLASH SHIELD with FLAP, REAR U1 $50.00
(top of page)
